Introduction
Many customers type "transformer electric" when searching online, even though the more technical terms are electrical transformer or power transformer. This article is designed to clear up the terminology while offering a complete, professional explanation of what transformers are, why they matter, and how to choose the right one for your application. By the end, you will not only understand the basics of transformers but also know how to source reliable equipment from trusted manufacturers like Energy Transformer.
What is Transformer Electric?
In everyday language, transformer electric usually refers to an electrical transformer. A transformer is an electrical device used to change voltage levels—either stepping voltage up for transmission across long distances or stepping it down for safe distribution and end use.
Technical Principle

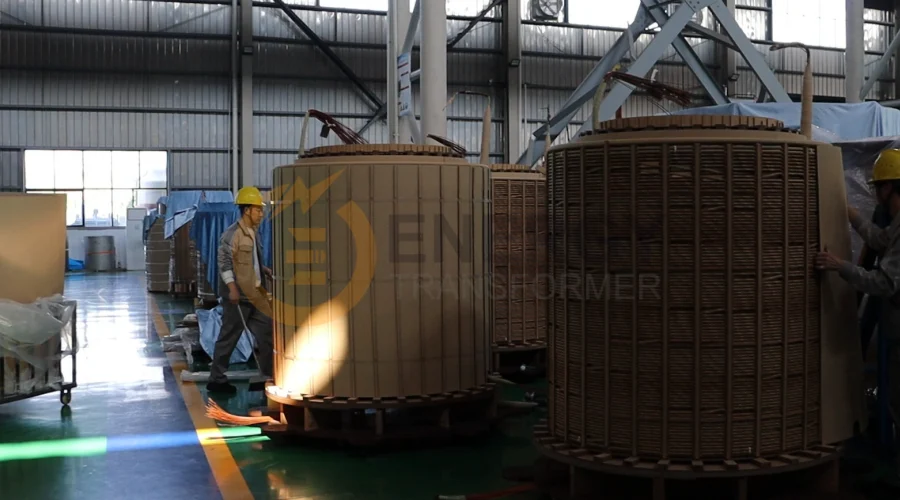

A transformer operates based on electromagnetic induction. It uses two or more coils of wire (windings) wrapped around a magnetic core. When alternating current flows through the primary winding, it generates a magnetic field, which induces a voltage in the secondary winding. The ratio of turns between the windings determines whether the voltage is increased or decreased.
For example:
-
If the secondary winding has twice as many turns as the primary, the voltage is approximately doubled.
-
Conversely, if the secondary has half the turns, the voltage is halved.
This simple principle allows power to be transmitted at high voltages (which reduces line losses) and safely distributed at lower voltages for consumption.
In short: Transformer Electric = Electrical Transformer, a vital component for stable and efficient power systems.
Main Types of Transformer Electric
Transformers are not one-size-fits-all. Depending on where they are used in the electrical system, they fall into several categories:
Comparative Table of Transformer Types
| Type | Voltage Level | Typical Capacity | Application Example | Cooling Method |
|---|---|---|---|---|

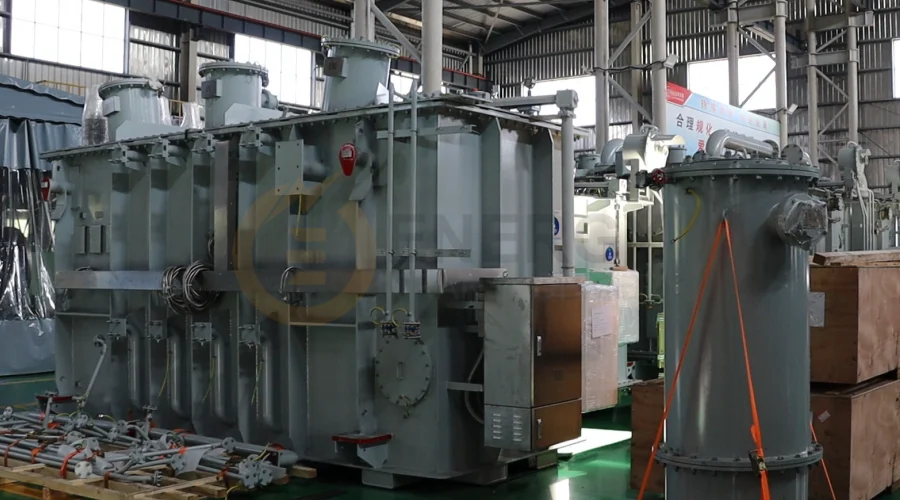

| Power Transformer | 110kV – 500kV | Tens–hundreds MVA | Transmission grids, substations | Oil-immersed |
| Distribution Transformer | 6kV – 33kV | < 10 MVA | Factories, residential neighborhoods | Oil-immersed / Dry-type |
| Pad-Mounted Transformer | 11kV – 33kV | 50 kVA – 5 MVA | Urban commercial/underground systems | Oil-immersed |
| Pole-Mounted Transformer | 6kV – 11kV | 10 kVA – 500 kVA | Rural electrification, small loads | Oil-immersed |
| Dry-Type Transformer | 400V – 33kV | Up to 10 MVA | Hospitals, malls, schools (indoor) | Air/resin cooling |
1. Power Transformers
-
Found in high-voltage transmission networks.
-
Typically rated from tens to hundreds of MVA.
-
Designed to operate continuously at near full load.
-
Critical for moving electricity efficiently from generation stations to distant regions.
2. Distribution Transformers
-
Located closer to end users—industrial plants, commercial complexes, and residential neighborhoods.
-
Typically rated below 10 MVA.
-
Convert high transmission voltages down to usable levels such as 11kV → 415V.
3. Pad-Mounted Transformers
-
Housed in a tamper-proof metal enclosure.
-
Installed on the ground (pad) in urban or suburban areas.
-
Often serve underground distribution networks.
-
Safer and more aesthetic in city centers.
4. Pole-Mounted Transformers
-
Small transformers mounted on utility poles.
-
Common in rural or semi-urban areas.
-
Economical solution for spreading electricity over large, sparsely populated regions.
5. Dry-Type vs. Oil-Immersed Transformers
-
Dry-Type Transformers
-
Use air, resin, or cast-coil insulation.
-
Safer for indoor environments like hospitals, shopping centers, and office towers.
-
Require less maintenance, though typically cost more.
-
-

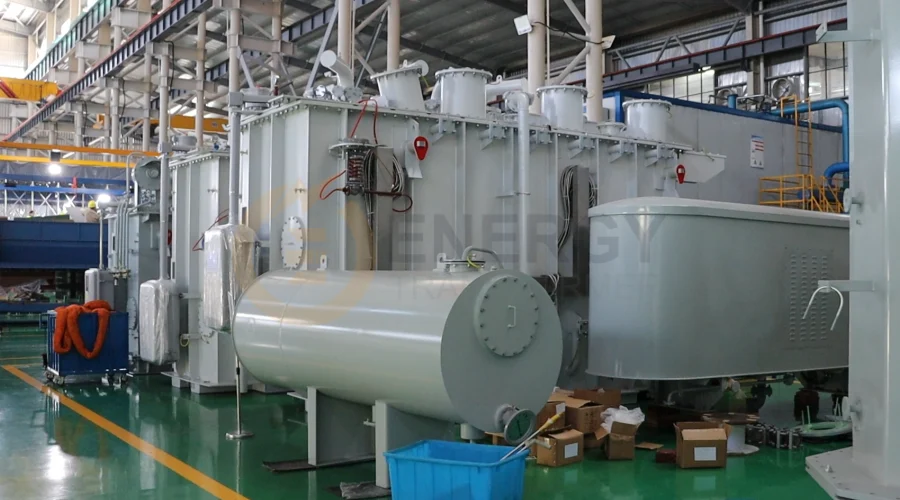

Oil-Immersed Transformers
-
Windings are submerged in insulating mineral oil.
-
Provide excellent cooling and durability.
-
Ideal for outdoor or heavy-duty industrial use.
-
Applications of Transformer Electric
Transformers are essential across almost every sector of modern power and energy infrastructure. Here are some of the most common applications:
1. Power Utilities and Grids
Transformers allow bulk transmission of electricity from generating stations to users. By stepping up voltage for transmission and stepping it down for distribution, they minimize losses and stabilize supply.
2. Industrial Enterprises
Factories, refineries, and steel plants require dedicated transformers to handle high loads. Transformers here are customized for reliability and resilience against fluctuating demand.
Case Study: A cement factory using several 5 MVA distribution transformers to power grinding mills and kilns.
3. Commercial Buildings
Hospitals, shopping malls, airports, and office complexes rely on dry-type or pad-mounted transformers to ensure safe and uninterrupted power. For critical environments like hospitals, redundancy (N+1 configuration) is often required.
4. Renewable Energy Systems
Solar and wind farms generate electricity at variable voltages. Step-up transformers raise the voltage so the energy can be transmitted to the main grid. Without transformers, renewable power could not integrate smoothly with conventional networks.
Learn More：Transformer of Energy: Understanding How Electrical Power Truly Flows
How to Choose the Right Transformer Electric
Choosing the right transformer requires balancing technical requirements, installation conditions, and budget. Here are the most important factors:
-
Power Rating (kVA or MVA):
-
Match the transformer capacity to your peak demand.
-
Oversizing increases cost, undersizing risks failure.
-
-
Voltage Class:
-
Check both primary (incoming) and secondary (outgoing) voltages.
-
Common ratings include 6kV, 11kV, 33kV, up to 500kV for power transformers.
-
-
Cooling Method:
-
Oil-immersed units are robust and handle high loads.
-
Dry-type units are safer indoors but may have lower ratings.
-
-
Certifications & Standards:
-
Look for CE, CSA, UL, IEC, or ISO certifications to ensure compliance.
-
For export, ensure compatibility with destination country standards.
-
-
Manufacturer Reliability:
-
Partner with companies offering proven track records, advanced testing facilities, and strong after-sales support.
-
Energy Transformer stands out with modern production facilities, customized engineering, and export-ready certifications.
-
Learn More：What's Inside a Transformer on a Telephone Pole? The Hidden Heart of Your Power Grid
Frequently Asked Questions (FAQ)
Q1: Is there a difference between Transformer Electric and Electrical Transformer?
A: No, both terms refer to the same device. "Transformer electric" is simply a common search phrase used by non-specialists.
Q2: What parameters should I check before buying a transformer?
A: Voltage, power rating, installation environment (indoor vs outdoor), cooling method, and compliance with relevant standards.
Q3: Which is better, oil-immersed or dry-type transformers?
A: Neither is universally better. Oil-immersed units are better for high-power outdoor use. Dry-type units are safer indoors and require less maintenance.
Q4: How long does a transformer last?
A: With proper maintenance, oil-immersed transformers can last 25–40 years. Dry-type transformers typically last 20–30 years.
Q5: What maintenance is required?
A: Oil level and quality checks, insulation resistance tests, thermal imaging, and general inspections are standard for long service life.
Conclusion
The term transformer electric may not sound technical, but it represents one of the most essential components of modern power infrastructure. From high-voltage transmission to local distribution, transformers ensure safe, efficient, and reliable electricity supply across industries, businesses, and homes.
At Energy Transformer, we specialize in designing, manufacturing, and exporting high-quality electrical transformers tailored to customer needs. With advanced facilities, international certifications, and strong after-sales support, we are your trusted partner in reliable power solutions.
👉 Contact Energy Transformer today for expert consultation, custom transformer designs, and competitive pricing for your projects.
