Wire vs. Foil Winding: The Transformer Design Guide

Power transformers are at the heart of modern electrical infrastructure, enabling the efficient transmission and distribution of energy across cities, industries, and homes. At the core of every transformer lies the winding – a critical component that determines performance, efficiency, and reliability.

Two of the most widely used winding techniques in transformer design are wire winding and foil winding. While both serve the same fundamental purpose of carrying current and transferring energy, their construction methods, material usage, and performance characteristics vary significantly.

This article explores the differences between wire winding and foil winding, their respective advantages, and where each is best applied in transformer manufacturing.

Table of Contents

What is Wire Winding in Transformers?

Wire winding refers to the use of round or rectangular conductors (typically copper or aluminum wire) wound around a core to form transformer coils.

Materials Used: Enamel-coated copper or aluminum wires.
Construction: Layers of insulated wires are wound in a spiral or helical fashion.
Flexibility: Suitable for both low-voltage and high-voltage applications.

Key Characteristics of Wire Winding:

Can handle high voltage applications due to thicker insulation.
Offers design flexibility, making it suitable for various transformer ratings.
Relatively easy to repair and rewind if faults occur.

What is Foil Winding in Transformers?

Foil winding is a more modern technique that uses thin copper or aluminum strips (foils) wound in flat layers to form the transformer coil.

Materials Used: Copper or aluminum foils with insulating layers in between.
Construction: A single wide conductor is wound with insulating material, forming a smooth and compact coil.
Strength: Provides better mechanical integrity against electromagnetic forces.

Key Characteristics of Foil Winding:

Excellent for low-voltage, high-current windings.
Provides uniform current distribution across the winding.
Enhanced thermal performance, as foils dissipate heat more effectively.

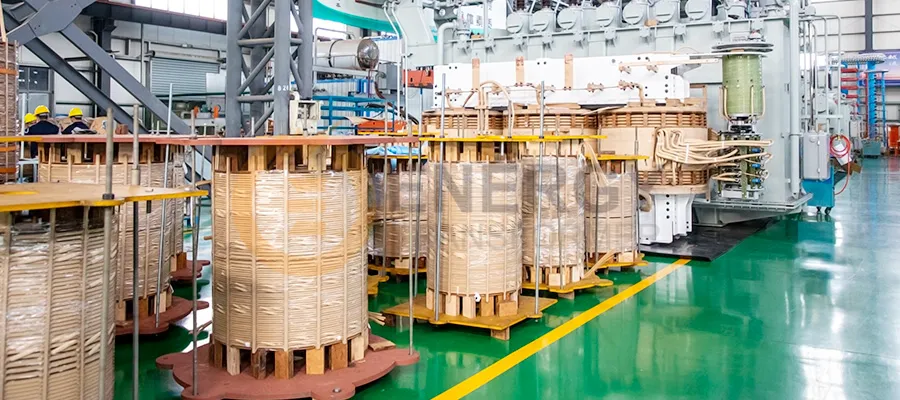

Energy Transformer – Wire Winding and Foil Winding power transformer technology for industrial and utility applications in the US, Canada, UK, Germany, France, Spain, Italy, Netherlands, and Australia.

Key Differences Between Wire Winding and Foil Winding

Aspect	Wire Winding	Foil Winding
Conductor Type	Round/rectangular wire (copper/aluminum)	Flat copper/aluminum foil strips
Current Capacity	Suitable for moderate to high current	Ideal for very high current applications
Voltage Range	Works well for high voltage	Best for low voltage
Thermal Performance	Moderate heat dissipation	Excellent heat dissipation
Mechanical Strength	Good, but may deform under heavy short-circuit stress	Very strong and resistant to short-circuit forces
Manufacturing Complexity	Mature and widely used	Requires specialized equipment
Cost	Generally lower	May be higher due to material and process
Applications	HV windings, medium-to-large transformers	LV windings, distribution transformers, reactors

Advantages of Wire Winding

Wire winding has been the traditional choice for decades, offering several benefits:

Versatility – Can be used for both high-voltage and low-voltage windings.
Mature Technology – Widely understood and supported across the transformer industry.
Ease of Repair – Wire coils can be more easily rewound or repaired if needed.
Cost Efficiency – Often more economical for certain ratings and designs.

Advantages of Foil Winding

Foil winding technology has grown in popularity, especially in modern distribution transformers:

Uniform Current Distribution – Eliminates issues of unequal current sharing.
Improved Short-Circuit Strength – The compact and solid structure resists mechanical forces.
Better Cooling Performance – Wide surface area helps with efficient heat dissipation.
Reduced Production Time – Automated winding machines can streamline manufacturing.
Space Saving Design – Compact coils reduce transformer size and improve power density.

Applications in Power Transformers

Wire Winding Applications:

Commonly used in high-voltage windings due to superior insulation properties.
Preferred in medium andlarge power transformers.
Suitable for situations requiring flexible design adjustments.

Foil Winding Applications:

Typically used for low-voltage windings where currents are very high.
Widely adopted in distribution transformers (especially below 35 kV).
Applied in inductors and reactors for improved thermal and electrical performance.

In Europe and North America, where energy efficiency and reliability are increasingly critical, foil winding is becoming the preferred choice for distribution-level equipment, while wire winding remains dominant in high-voltage transmission transformers.

Learn More：High Voltage vs. Low Voltage Transformers: Key Differences and Real-World Applications

Energy Transformer – Wire vs. Foil winding power transformer design, engineered in advanced factories for wholesale and industrial supply across the US, Canada, UK, Germany, France, Italy, Spain, Netherlands, Portugal, and Australia.

How to Choose Between Wire and Foil Winding?

Selecting the right winding technique depends on several factors:

Voltage and Current Levels: Wire winding is better for high voltage, foil winding excels in high current.
Mechanical Stress Requirements: Foil windings withstand short-circuit forces better.
Thermal Management Needs: Foil designs provide superior cooling.
Cost vs. Performance: Wire winding may be more cost-effective in some cases, but foil winding offers higher efficiency.
Industry Standards: Ensure compliance with IEC or IEEE regulations for transformer design.

Conclusion

Both wire winding and foil winding remain essential in modern transformer design, each serving distinct roles in power and distribution applications. Wire winding continues to be the preferred solution for high-voltage systems, offering versatility and proven reliability, while foil winding has become the go-to choice for low-voltage, high-current distribution transformers, valued for its efficiency, thermal performance, and mechanical strength.

Selecting the right winding technology is more than a design preference—it is a strategic decision that directly impacts transformer performance, lifecycle cost, and long-term reliability. For utilities, industries, and OEMs across global markets, understanding these differences ensures better efficiency, durability, and return on investment.
