As someone who has spent years working with electrical power systems, I often get asked: “How does a transformer really transmit energy?” At first glance, a transformer might seem like a static box of metal and wires, but it’s one of the most elegant and essential devices in electrical engineering. In this article, I’ll break down the science, technology, and practical applications of a transformer of energy, adding insights from decades of industry experience.
What is a Transformer of Energy?
A transformer of energy is a device that transfers electrical energy from one circuit to another through electromagnetic induction, without any moving parts. Unlike motors or generators, transformers are static, yet they perform a variety of critical functions simultaneously:
-
Voltage transformation – stepping voltage up or down to match transmission or consumption needs
-
Current transformation – adjusting current levels to reduce losses in transmission lines
-
Impedance matching – ensuring maximum energy transfer efficiency
-
Electrical isolation – separating circuits for safety while still transferring energy
Depending on their function, transformers can be classified as power transformers, distribution transformers, dry-type transformers, oil-immersed transformers, or special-purpose transformers for renewable energy systems, electric vehicles, and industrial machinery.
Inside a Transformer: Components and Working Principles
To understand a transformer of energy, you need to peek inside. The main components are:
-
Iron Core – Provides a low-resistance path for magnetic flux, minimizing energy loss. The core can be laminated to reduce eddy current losses, and modern designs often use high-permeability silicon steel for better efficiency.
-
Primary Winding – Connected to the input power source, it creates a changing magnetic field in the core.
-
Secondary Winding – Magnetically coupled to the primary, it induces voltage according to the turns ratio.
Electromagnetic Induction: The Heart of Energy Transfer
The transformer operates based on Faraday’s Law of Electromagnetic Induction. When AC voltage is applied to the primary winding, it generates a time-varying magnetic flux that links the secondary winding, producing an induced voltage.
For an ideal transformer:
Where N1 and N2 are the number of turns in the primary and secondary windings, respectively.
This is why the voltage ratio between primary and secondary is proportional to the turns ratio, a fundamental concept in transformer design.
Energy Transmission Process: Beyond Voltage
Transformers don’t create energy; they transfer it efficiently. Energy transmission depends on voltage, current, and time. By increasing voltage and decreasing current, transformers minimize energy loss along transmission lines. The basic energy loss formula in a conductor is:
Where I is current, R is line resistance, and t is time.
High-voltage step-up transformers at power plants reduce current, thereby reducing Joule losses. Step-down transformers near cities or industrial areas bring voltage to usable levels, ensuring safe and efficient energy delivery.
Types of Transformers and Their Energy Roles
-

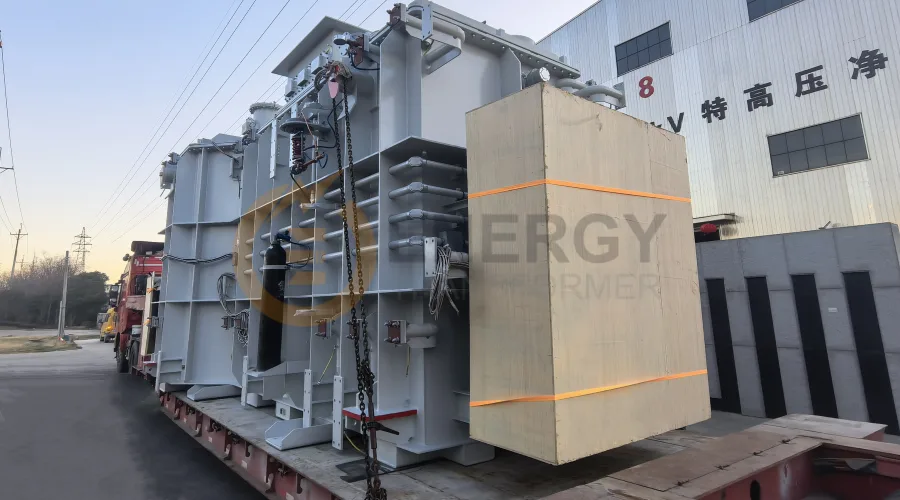

Power Transformers – Used in transmission networks for high-voltage energy transport. They handle large amounts of energy and are typically oil-immersed for cooling.
-
Distribution Transformers – Step down voltage from medium voltage to low voltage for residential or commercial use. Often dry-type or pad-mounted.
-
Autotransformers – Share part of the winding between primary and secondary, saving material and improving efficiency for specific applications.
-
Isolation Transformers – Provide galvanic isolation for sensitive electronics, enhancing safety and reducing noise.
-
Special Transformers – Include rectifier transformers, instrument transformers (CT/PT), and transformers for renewable energy integration like solar inverters and wind turbines.
Technical Considerations: Losses and Efficiency
Real-world transformers are not ideal. Engineers must account for:
-
Copper losses – Heat generated in windings due to resistance
-
Iron losses – Hysteresis and eddy current losses in the core
-
Leakage flux – Magnetic flux not linking both windings perfectly
Modern energy-efficient transformers optimize core materials, winding configurations, and cooling methods to minimize losses and improve power factor and voltage regulation.
Transformer of Energy in Modern Grids
In today’s smart grids and renewable energy systems, transformers are more than passive devices:
-
They enable grid integration of solar and wind energy.
-
They help stabilize voltage and current during peak load conditions.
-
Intelligent transformers can provide real-time monitoring, fault detection, and adaptive load balancing.
For industries, this means reliable energy supply, reduced downtime, and optimized efficiency.
Why Transformers Fascinate Me
I’ve always been amazed at how such a seemingly simple device can carry gigawatts of energy safely and efficiently across hundreds of kilometers. Transformers are silent workhorses—no noise, no moving parts—but without them, modern life as we know it wouldn’t exist. From powering cities to enabling electric vehicles, transformers truly are the backbone of energy systems.
Conclusion
A transformer of energy is far more than wires and metal—it’s a master of energy flow. By leveraging electromagnetic induction, it efficiently transfers energy, reduces transmission losses, isolates circuits for safety, and stabilizes voltage and current across the grid. Whether in industrial plants, residential networks, renewable energy farms, or EV charging stations, transformers ensure safe, reliable, and efficient energy delivery, making them indispensable in modern electrical engineering.
Frequently Asked Questions (FAQ)
Q1: What is a transformer of energy?
A transformer of energy is an electrical device that transfers energy between circuits through electromagnetic induction, without moving parts. It can step voltage up or down, adjust current, isolate circuits, and improve efficiency in power transmission.
Q2: How does a transformer reduce energy losses?
By increasing voltage and reducing current in transmission lines, transformers minimize Joule losses (I²R losses). High-voltage step-up transformers are used for long-distance transmission, while step-down transformers make electricity safe for end users.
Q3: What are the main types of transformers?
The most common types include power transformers, distribution transformers, autotransformers, isolation transformers, and special-purpose transformers for renewable energy systems, electric vehicles, and industrial equipment.
Q4: What certifications are important for transformers in global markets?
Transformers for international markets often carry certifications such as CE, UL, and CSA, which ensure compliance with safety and performance standards in regions like the USA, Canada, and Europe.
Q5: What voltage and power ranges do transformers cover?
Energy Transformer manufactures a wide range of products, from 6–500kV voltage levels and 15kVA–1200MVA capacity, meeting industrial, commercial, and renewable power project requirements.
Q6: Why are transformers essential in modern power grids?
Transformers enable efficient long-distance power transmission, integrate renewable energy sources, provide electrical isolation, and stabilize voltage and current in smart grids. Without transformers, large-scale electricity distribution would not be possible.
Q7: How can I choose the right transformer for my project?
Selection depends on your application—voltage level, load capacity, environment (indoor/outdoor), and whether you need isolation or step-up/step-down functions. Consulting with a trusted manufacturer like Energy Transformer ensures the right solution.
Q8: Does Energy Transformer supply to international markets?
Yes. As a leading Chinese manufacturer, Energy Transformer supplies and wholesales to markets worldwide, including the USA, Canada, UK, Germany, France, Netherlands, Spain, Italy, Australia, Portugal, and beyond.
