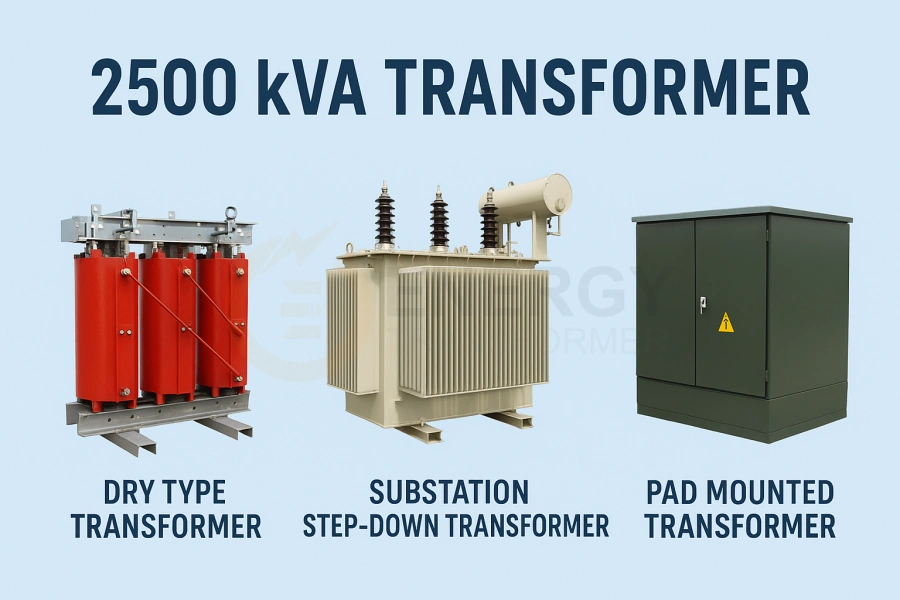

The 2500 kVA transformer stands as a cornerstone of modern power distribution systems. In 2025, with a growing focus on energy efficiency and smart grid integration, the selection of the right 2500 kVA transformer is a critical decision. At Energy Transformer, we understand the nuances of this choice and offer a comprehensive range of solutions. This guide delves into the specifics of the three main types of 2500 kVA transformers—dry type, substation, and pad-mounted—helping you make an informed decision for your project.

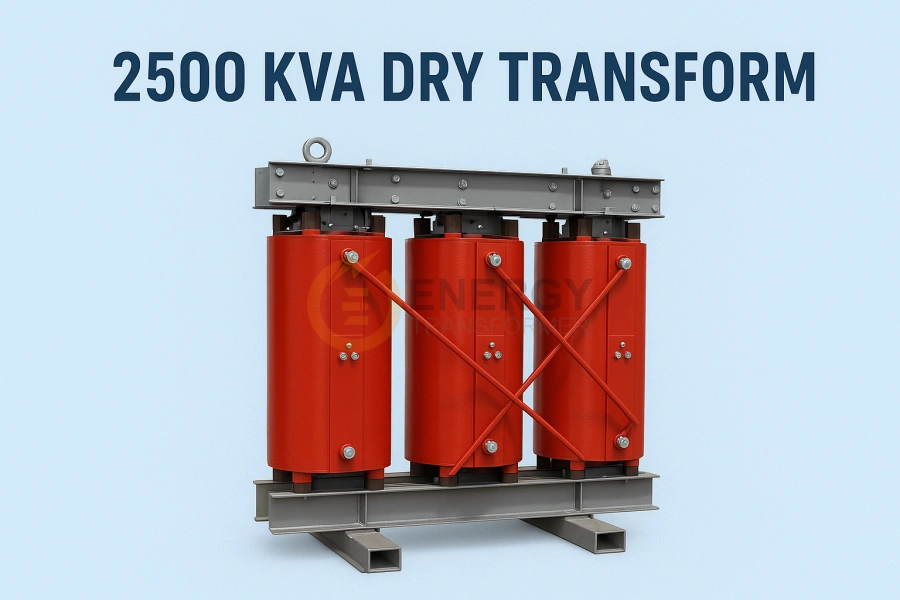

The 2500 kVA Dry Type Transformer: Safety and Efficiency for Indoor Use
For applications where fire safety, environmental protection, and a compact footprint are paramount, the 2500 kVA dry type transformer is the superior choice. Unlike its oil-filled counterparts, this power transformer uses solid insulating materials and air cooling, completely eliminating the risk of flammable liquid leaks. This makes the 2500 kVA dry type transformer ideal for public and sensitive environments.
Technical Specifications and Key Features
-
Voltage Levels: The 2500 kVA dry type transformer is typically designed to step down medium voltage to low voltage. Common high-voltage (HV) ratings include 10 kV, 11 kV, 20 kV, and 35 kV, with corresponding low-voltage (LV) ratings of 0.4 kV, 0.48 kV, or 0.69 kV. This distribution transformer is also available in higher voltage classes for specific industrial applications.
-
Cooling Method: The standard cooling designation is AN (Air Natural), where heat is dissipated by natural convection. For increased capacity or temporary overload conditions, AF (Air Forced) cooling can be added, making it a versatile electrical transformer.
-
Loss Parameters: The efficiency of a 2500 kVA dry type transformer is crucial. Modern units meet stringent standards like DOE 2025 or Tier 2, focusing on minimizing no-load loss and load loss. This results in significant long-term energy savings.
-
Applications: A 2500 kVA dry type transformer is a go-to solution for data centers, hospitals, high-rise buildings, commercial centers, and subway stations, where safety and a clean installation environment are non-negotiable.
Choosing a 2500 kVA dry type transformer from Energy Transformer means investing in a reliable, low-maintenance, and eco-friendly electrical equipment.
Read More:Expanded Medium Voltage Transformer Testing

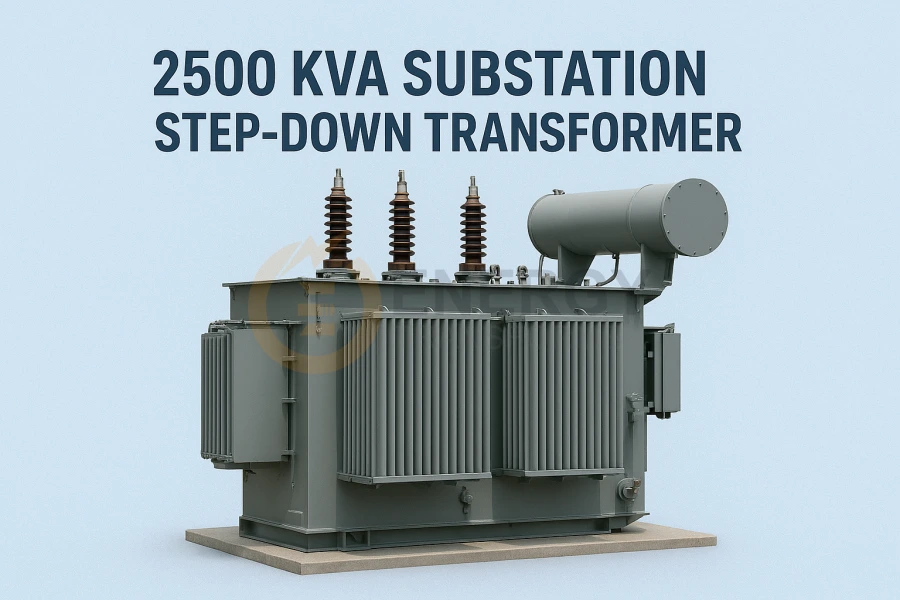

The 2500 kVA Substation Transformer: The Workhorse for Industrial Loads
When your project demands robust, continuous power and high-voltage handling, the 2500 kVA substation transformer is the perfect fit. This type of power transformer is built for durability and long-term operation within dedicated utility or industrial substations, managing heavy and fluctuating loads with ease. While primarily oil-immersed, dry-type versions are also available for specific indoor substation applications.
Technical Specifications and Key Features
-
Voltage Levels: The 2500 kVA substation transformer is engineered to handle a broad range of medium and high voltages, including 35 kV, 66 kV, and even 110 kV on the HV side. It steps down power to various distribution voltages like 10 kV, 6 kV, or 0.4 kV to supply power to industrial complexes or municipal grids.
-
Cooling Method: Most 2500 kVA substation transformers use ONAN (Oil Natural Air Natural) cooling. For scenarios requiring higher capacity or a safety margin, ONAF (Oil Natural Air Forced) or OFAF (Oil Forced Air Forced) cooling can be utilized, making the transformer more powerful.
-
Short-Circuit Impedance: This is a critical parameter for a 2500 kVA transformer. The impedance value impacts the system's ability to handle fault currents and affects voltage regulation. Our engineers can help you match the ideal impedance for your specific network.
-
Applications: The 2500 kVA substation transformer is an essential component for industrial parks, large-scale manufacturing facilities, regional power distribution networks, and as a step-up transformer for solar farms and wind power plants to inject power into the grid.
For a reliable and high-performance 2500 kVA transformer for your industrial or utility project, Energy Transformer delivers top-quality solutions.

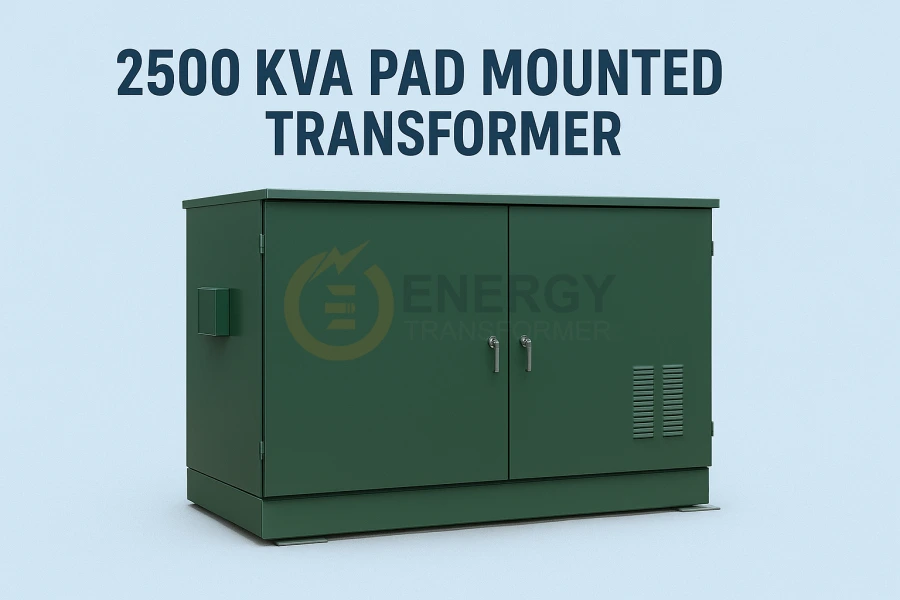

The 2500 kVA Pad-Mounted Transformer: Compact, Secure, and Aesthetic
The 2500 kVA pad-mounted transformer offers an optimal balance of functionality and aesthetics. Encased in a secure, tamper-resistant cabinet, this compact transformer is designed for outdoor installation on a concrete pad, eliminating the need for a separate fenced-in enclosure.
Technical Specifications and Key Features
-
Voltage Levels: The 2500 kVA pad-mounted transformer is widely used in medium-voltage distribution systems. Common HV ratings are 10 kV, 13.8 kV, and 20 kV, stepping down to LV ratings of 0.4 kV or 0.69 kV.
-
Cooling Method: This type of transformer typically uses ONAN cooling, relying on natural air circulation through the cabinet.
-
Safety and Design: The live parts of the 2500 kVA pad-mounted transformer are fully enclosed within a robust, weatherproof steel cabinet, making it safe for public areas. It also features tamper-proof latches and optional loop-feed capability to enhance grid reliability.
-
Applications: The 2500 kVA pad-mounted transformer is an ideal solution for residential communities, shopping malls, airports, university campuses, and distributed renewable energy sites where a low-profile, secure, and visually appealing transformer is desired.
For projects that require a space-saving and secure electrical transformer, the 2500 kVA pad-mounted transformer from Energy Transformer is the smart choice.
Conclusion: Partner with Energy Transformer for Your 2500 kVA Needs
The 2500 kVA transformer is a long-term investment in your power infrastructure's efficiency and reliability. At Energy Transformer, we offer a full suite of 2500 kVA transformers, each designed to meet specific application requirements. Our experts can guide you through the selection process, from analyzing voltage levels and loss parameters to considering the best cooling method and installation environment.
Contact Energy Transformer today to speak with a power solutions expert and get a custom quote for your next 2.5 MVA transformer project.
