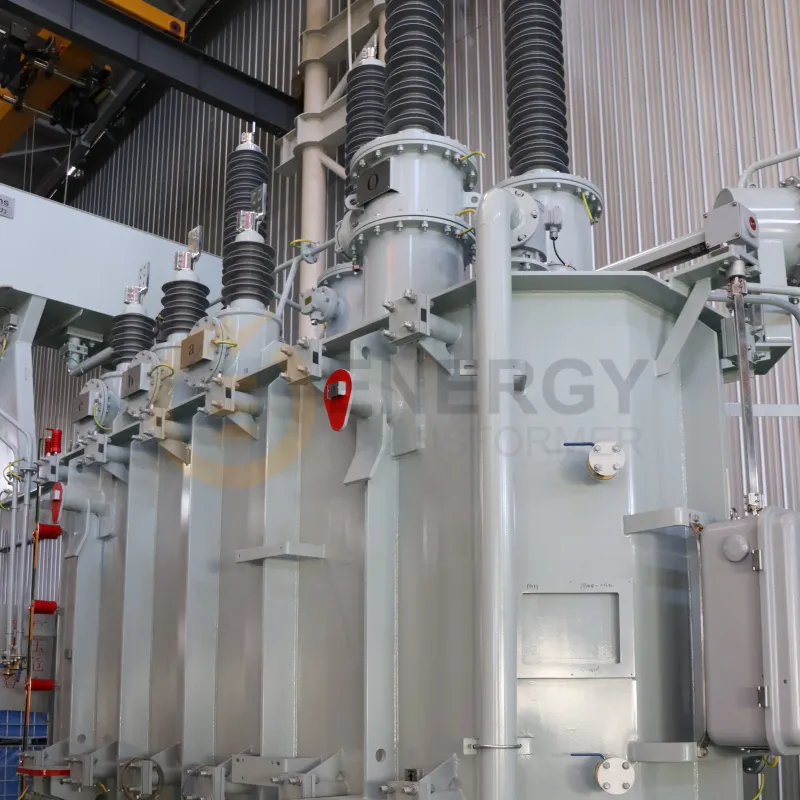

The Powerhouse of Steel: Energy Transformer 10 MVA Large Arc Furnace Transformer Systems (EAF, LF, SAF)

The Core of Metallurgical Power: Unmatched Performance Engineered for Extreme Conditions

At Energy Transformer, we specialize in designing power solutions for the most punishing industrial environments on the planet. Our professional line of Arc Furnace Transformers is the definitive choice for high-volume steel, ferroalloy, and specialized metal production. As a leading global Furnace Transformer Manufacturer China / Supplier, we are dedicated to providing Large Power Transformers for Furnace applications, ensuring maximum reliability and efficiency where it matters most.

Our portfolio focuses on robust, high-capacity, custom-engineered units, ranging from the standard 10 MVA Furnace Transformer up to massive power classes, ensuring we power the future of modern metallurgy.

I. Furnace Transformer Product Series and Core Applications

Modern metallurgical processes demand precise power quality tailored to each stage. We offer a full range of specialized transformers to meet these diverse challenges, ensuring precise and reliable power from primary melting to secondary refining.

Transformer Type	Key Application Scenario	Example Materials	Core Function and Features
AC Electric Arc Furnace Transformer (AC EAF Transformer)	Scrap Steel Melting, Primary Smelting	Scrap Steel, Direct Reduced Iron (DRI), Hot Briquetted Iron (HBI)	Heavy Duty Furnace Transformer; built to withstand the most frequent and severe secondary-side short-circuit shocks.
DC Electric Arc Furnace Transformer (DC EAF Transformer)	Scrap Steel Melting (Single Electrode)	Scrap Steel	Works with a rectifier; requires high pulse-number rectification capability and design mitigation against DC magnetic bias.
Ladle Furnace Transformer (LF Transformer)	Secondary Refining, Temperature & Chemistry Adjustment	Molten Steel	LF Transformer; provides stable, precise power for slag heating and steel stirring. Lower power class, but demands high stability and tapping accuracy.
Submerged Arc Furnace Transformer (SAF Transformer)	Smelting Ferroalloys, Calcium Carbide, Industrial Silicon	Ferromanganese, Ferrosilicon, Calcium Carbide, Yellow Phosphorus	Smelting Furnace Transformer; designed for long-term, continuous, ultra-heavy load operation; load factor can reach 120%.
Induction Furnace Transformer	Large Induction Furnaces, Medium-Frequency Power Supply	Cast Iron, Non-ferrous Metals	Provides isolation and step-down for medium- or high-frequency power supplies; specialized Industrial Furnace Transformer with unique frequency characteristics.

II. Energy Transformer: Detailed Technical Specifications and Design Advantages

Our transformers adhere strictly to the highest international standards, including ANSI / IEEE / IEC Furnace Transformer Standards, ensuring global grid compatibility and superior performance.

A. Performance Parameters (Performance Specifications)

Parameter Item	Energy Transformer Capability Range (Typical)	Design Focus
Rated Capacity	1.5MVA to 300MVA (Custom up to 1200MVA class)	Focus on Large Power Transformer capacity, supporting large-scale steel mill operations.
Primary Voltage	6kV to 500kV	High Voltage Furnace Transformer solutions, adaptable to any major global transmission network.
Secondary Current	Up to 120kA+	High Current Furnace Transformer; ensures stable electrode operation and rapid melting.
Short-Circuit Impedance (Z%)	Typically 8%∼15% (Higher than standard power transformers at 5%∼8%)	Inherent Current Limiting: High impedance design effectively suppresses short-circuit currents, protecting the transformer and the electrode system.
Tapping Range & Steps	Typically ±20%∼±30%, with 20 to 35 tapping positions	Precise Melting Control: Achieves multi-step or stepless accurate voltage regulation via On-Load Tap Changer (OLTC) to optimize arc power.
Insulation Class	A (Oil-Immersed), F/H (Dry-Type/Cast Resin Options)	Ensures long-term reliability of insulation materials under high heat and high voltage stresses.

B. Structural and Design Advantages: An Engineering Masterpiece for Extreme Conditions

The design of a furnace transformer must exhibit outstanding short-circuit withstand capability and thermal cycling endurance. Our engineering philosophy is based on over-designing for ultimate durability.

1. Extreme Mechanical Endurance

• Reinforced Core and Clamping Structure: The core and winding assembly feature a specially designed high-strength clamping structure. Against the massive, repetitive electromagnetic force shocks generated by frequent secondary-side short circuits during the EAF melting phase, this structure prevents winding displacement and insulation damage. We use Finite Element Analysis (FEA) to simulate extreme conditions, optimizing support components and press plate designs.

• Copper Winding Conductors: Copper Winding Furnace Transformer material is standard, offering superior conductivity and strength.

  • Low-Voltage Winding Structure: Often uses multi-layer flat copper bar or Continuous Transposed Conductor ($\text{CTC}$) spiral structures, significantly reducing eddy current losses and maximizing resistance to mechanical and thermal stress. The $\text{LV}$ leads are typically designed for side-wall exit bushings to minimize connection length and loss.

  • High-Voltage Winding Structure: Uses concentric cylindrical or disc-type structures, incorporating insulating barriers for reliable placement of the tap windings, ensuring insulation margin and mechanical stability.

2. Optimized Thermal Management System

• High-Efficiency Cooling Circulation: Forced cooling methods like OFWF (Forced Oil Water Forced) are utilized for the largest Large Power Transformer for Furnace units. The cooling system maintains low, stable oil and winding temperatures, minimizing thermal stress on insulation paper and oil. Coolers are often independent external units for easier maintenance.

• Specialized Low-Voltage Lead Design: Since secondary currents can exceed tens of thousands of amps, low-voltage leads and bushings generate enormous heat. We use water-cooled bushings or multiple parallel copper bars, and use FEA to optimize shielding and busbar arrangement, mitigating localized eddy current losses and hot spots.

• Tank Magnetic Shielding: The transformer tank walls, especially near the $\text{LV}$ lead exits, utilize high-permeability steel plates or magnetic shielding techniques to prevent leakage flux from large currents from inducing eddy currents in the steel tank, which would cause localized overheating and additional losses.

3. Power Quality and System Compatibility

• Harmonic and Unbalanced Load Management: The non-linear nature of the electric arc and three-phase unbalance generate significant harmonics. Our designs employ special inter-phase impedance balancing and enhanced winding connections (e.g., Yd​11 or Dd​0) to mitigate adverse effects on the grid and minimize additional transformer losses.

• On-Load Tap Changer ($\text{OLTC}$) Reliability: Furnace transformer $\text{OLTC}$ units require an extremely high operational frequency (sometimes hundreds of operations per day). We select or customize $\text{OLTC}$ units known for high reliability and wear resistance, optionally configured with online oil filtration and monitoring systems to ensure dependable operation under frequent switching.

Learn More：15 MVA 132kV/33kV Substation Power Transformer CE / UL Listed Export to Europe & USA

III. Furnace Transformer Application and Performance Comparison

Although all fall under the category of furnace transformers, $\text{EAF}$, $\text{LF}$, and $\text{SAF}$ transformers have distinct design priorities tailored to their unique process requirements.

A. EAF vs. LF Transformer Differentiated Analysis

Feature/Parameter	EAF Transformer (Melting Furnace)	LF Transformer (Refining Furnace)
Primary Duty Cycle	Intermittent, High Impact (Frequent short circuits during melting)	Continuous, Stable (Requires smooth power delivery for refining)
Short-Circuit Frequency	Extremely High (Dozens per heat, as electrodes penetrate slag/scrap)	Low (Mainly during initial striking and adjustment phases)
Capacity Class	Large (Typically 50MVA and above, core melting equipment)	Medium (Typically 10MVA to 35MVA, used for temperature and alloying control)
Voltage Regulation	Wide Range (Must cover striking, melting, and refining power requirements)	Narrow Range (Primarily for precise molten steel temperature control; demands high voltage stability)
Mechanical Strength	Highest (Must be a true Heavy Duty Furnace Transformer)	High (Emphasis on arc stability and thermal cycle endurance)

B. Unique Requirements for $\text{SAF}$ Transformers (Smelting Furnace Transformer)

$\text{SAF}$ transformers, used in smelting ferroalloys and industrial chemicals, are characterized by:

1. Extended Continuous Operation: Smelting processes often last weeks or months, demanding extremely high long-term operational reliability and thermal stability from the transformer.

2. Sustained Overloading: Operation often occurs near or exceeding rated capacity (up to $110\%\sim 120\%$ load factor), imposing the highest demands on the cooling system and winding materials.

3. Ultra-High Current, Low Voltage: In large $\text{SAF}$ units, secondary current can exceed $100\text{kA}$, with extremely low voltages (below $100\text{V}$). This requires stringent design for the $\text{LV}$ side's copper busbar configuration and water-cooling system.

IV. Industry Landscape and Competitive Analysis

The global furnace transformer market is highly competitive, dominated by a few manufacturers with extensive heavy industry design and manufacturing capabilities.

A. Overview of Major Industry Players

Manufacturer	Key Strengths	Energy Transformer Position
ABB/Hitachi Energy	Long history, deep technological expertise, largest installed base globally, particularly strong in 500kV class Ultra-High Voltage and complex customization.	Technology Benchmarking & Advancement: Our designs strictly adhere to IEC and IEEE standards. We offer optimized cost-effectiveness and faster delivery while ensuring equivalent performance and reliability.
Siemens Energy	Advantages in digitalization and integrated solutions, focusing on deep integration of the transformer with overall metallurgical process control systems.	Flexible Integration Services: We offer complete solutions including transformer + OLTC + high-voltage switchgear + automation monitoring systems, meeting clients' needs for digital factories.
Tamin/Specialist European Makers	Expert in specialized customization for furnace and rectifier transformers, holding a high reputation in the European market.	Depth of Customization: As a leading Chinese Furnace Transformer Manufacturer, we leverage a robust supply chain and engineering capability to offer faster custom cycles and superior value compared to specialized European makers.

B. Energy Transformer's Competitive Edge

Choosing Energy Transformer means selecting the optimal balance of performance, reliability, and value:

1. High Cost-Performance Ratio and Rapid Delivery: Strong supply chain integration ensures we offer highly competitive pricing and shorter lead times without compromising material quality or engineering standards.

2. Global Certification Assurance: Our products carry full international sales and quality certifications, including CE, CSA, and UL, ensuring seamless integration into North American and European power systems.

3. Full Lifecycle Engineering Support: We provide comprehensive services, from pre-project electromagnetic field analysis (Field Simulation), furnace curve design, custom winding configuration, to installation guidance, on-site commissioning, and online condition monitoring system support.

4. $120\%$ Sustained Overload Capacity Commitment: For $\text{SAF}$ and heavy-duty $\text{EAF}$ applications, our cooling and winding systems are designed with a high safety margin to withstand $115\%\sim 120\%$ long-term overload operation, meeting the metallurgical industry's demand for ultimate production efficiency.

Learn More：What Is a GSU Transformer? A Complete Guide for Power Plant Procurement

V. Quality Control and Maintenance Optimization

Furnace transformers are critical industrial assets. Maximizing their lifespan and minimizing downtime is paramount.

A. Stringent Quality Control System

• Material Selection: The core uses high-permeability, low-loss premium silicon steel sheets, windings use high-purity oxygen-free copper, and the transformer oil is high-performance insulating oil, ensuring minimal no-load and load losses.

• Pre-Delivery Testing: All large furnace transformers undergo rigorous short-circuit impedance tests, temperature rise tests, lightning impulse tests, and partial discharge tests to ensure all indicators meet or exceed international standards. We particularly emphasize the verification of short-circuit withstand capability.

B. Maintenance and Monitoring Optimization

• Online Monitoring System ($\text{OMS}$): Optional integrated Online Monitoring Systems provide real-time tracking of critical operational parameters, including:

  • Dissolved Gas Analysis ($\text{DGA}$): Early detection of potential electrical or thermal faults.

  • Winding and Oil Temperature: Real-time thermal load management.

  • $\text{OLTC}$ Contact Wear and Operations Count: Predictive maintenance scheduling.

• Modular Design: The transformer's cooling system, $\text{OLTC}$, and bushings feature modular designs, making on-site maintenance and replacement easier and minimizing downtime caused by potential failures.

Energy Transformer is committed to being your most trusted Furnace Transformer Manufacturer / Supplier, delivering power solutions with the highest reliability, superior performance, and long-term operational value.

We are ready to leverage our expertise to provide a world-class $\text{EAF}$ transformer for your next-generation steel or smelting project. Would you like a customized technical proposal based on a specific power and voltage class?
