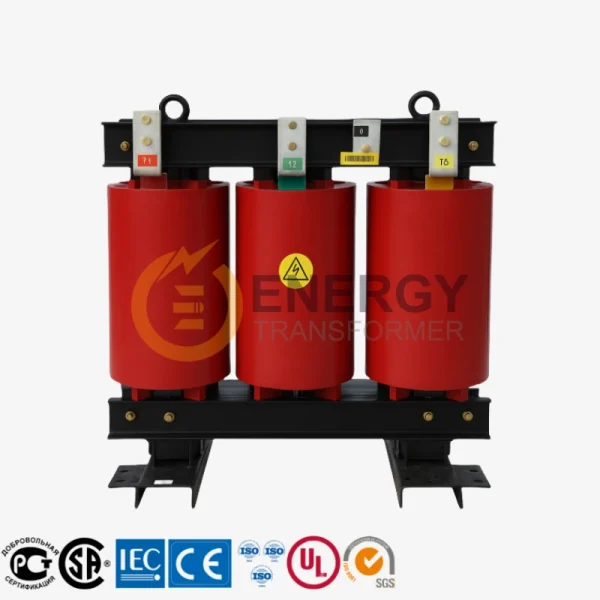

2000 kVA Medium Voltage Dry Type Transformer 12470V to 480Y 277V Three Phase North America

2000 kVA Medium Voltage Dry Type Transformer | 12470V to 480Y/277V Features

This 2000 kVA Medium Voltage Dry Type Transformer is engineered for safe, efficient, and maintenance-free operation in a wide range of commercial, utility, and industrial environments. With a primary voltage of 12470V and secondary output of 480Y/277V, this dry type power transformer is ideal for stepping down voltage in medium voltage networks.

Built with a high-grade silicon steel core and precision copper windings, the dry type distribution transformer offers excellent thermal performance, reduced energy losses, and long service life. The dry-type insulation system ensures high fire resistance, no oil leakage, and safe operation in indoor or environmentally sensitive locations.

This medium voltage transformer is housed in a rugged, corrosion-resistant enclosure and is fully compliant with ANSI, IEEE, UL, CSA, and CE standards. Suitable for North and South American markets, it supports applications in utility substations, commercial buildings, renewable energy, and heavy industry.

As a leading dry type transformer manufacturer, Energy Transformer provides direct factory supply, OEM customization, and reliable inventory for fast delivery. We serve key markets including the USA, Canada, Mexico, Brazil, Chile, and Colombia, supporting EPCs, wholesalers, and power contractors with high-performance medium voltage dry-type transformers.

Learn More:3000 kVA 13.8kV to 480V Three Phase Cast Resin Dry Type Transformer

2000 kVA 12470V to 480Y Medium Voltage Dry Type Transformer Technical Specs

No.	Item	Specification	Remarks
1	Power Rating	2000 kVA	Customizable from 300 kVA up to 10000 kVA
2	Primary Voltage	12470 V (Delta connection)	Optional: 4160 V, 13800 V, 34.5 kV for utility networks
3	Secondary Voltage	480Y/277 V (Wye grounded)	Other options: 208Y/120 V, 600Y/347 V, 240/120 V split-phase
4	Phase	Three-phase, 60 Hz	Available in single-phase or dual-voltage versions
5	Insulation Type	Dry Type (VPI / VPE Resin Impregnation)	Air-insulated, oil-free, eco-friendly alternative
6	Insulation Class	Class F (155°C standard)	Upgradeable to Class H (180°C) for high-temp areas
7	Temperature Rise	150°C (standard)	Optional 80°C, 115°C for improved lifecycle
8	Cooling Method	Air Natural (AN) or Air Forced (AF)	Suitable for indoor/outdoor use under NEMA 3R
9	Impedance Voltage	5.5% – 6.5%	Project-based tuning available for fault current limits
10	Short Circuit Withstand	25–50 kA, 2 seconds	Custom withstand values available on request
11	Voltage Taps	±2.5%, ±5%, 4-6 taps	Supports on-load or off-load tap changer options
12	Frequency	60 Hz	Export models support 50 Hz operation
13	Insulation Resistance	≥1000 MΩ	Enhanced reliability in wet or dusty environments
14	Leakage Magnetic Flux	Low-flux leakage core design	Reduces interference with adjacent equipment
15	Core Material	High-grade grain-oriented silicon steel	Minimizes no-load losses, improves magnetic flux path
16	Winding Material	Copper (oxygen-free, high conductivity)	Optional: aluminum winding for cost-sensitive projects
17	Enclosure Material	Galvanized cold-rolled steel	Powder-coated, rustproof for harsh environments
18	Protection Rating	NEMA 3R (standard)	Also available: NEMA 1, NEMA 12, IP44/IP54 enclosures
19	Operating Temperature Range	-25°C to +45°C	Extended options from -40°C to +55°C available
20	Humidity Adaptability	0% to 95%, non-condensing	Ideal for coastal, tropical, or high-humidity zones
21	Noise Level	≤60 dB(A)	Low-noise design for hospitals, schools, buildings
22	Approximate Weight	2600–3200 kg	Subject to final specs and accessories
23	Dimensions (L x W x H)	Approx. 1800 x 1300 x 1850 mm	Custom sizes based on mounting or cooling options
24	Standards Compliance	UL Listed, ANSI C57, IEEE C57.12, CSA C2, CE	Certified for US, Canada, Brazil, Chile, Mexico, and more
25	Warranty	1–2 years standard	Extended warranties and lifetime support available
26	Typical Applications	Commercial infrastructure, renewable power plants, industrial substations	Ideal for solar farms, manufacturing hubs, and public grid use
27	Global Supply & Service	Factory direct, global export	Main markets: USA, Canada, Mexico, Brazil, Colombia, Chile, Peru, Argentina

✅ 2000 kVA Medium Voltage Dry Type Transformer Overview

The 2000 kVA Medium Voltage Dry Type Transformer, designed for 12470V primary and 480Y/277V secondary voltages, is widely used in industrial, commercial, and utility power distribution systems. Manufactured by ENERGY TRANSFORMER, this eco-friendly, fire-safe transformer features Class F/H insulation, advanced vacuum pressure impregnation (VPI), and high mechanical strength. It supports indoor and outdoor installations with air natural (AN) or air forced (AF) cooling, fully compliant with ANSI/IEEE C57.12, UL, CSA, CE, and IEC 60076-11 standards.

✅ 2000 kVA Medium Voltage Dry Type Transformer Definition

A Medium Voltage Dry Type Transformer uses air or epoxy resin to insulate windings instead of oil, greatly reducing fire hazards and environmental risks. This design makes it ideal for installations in commercial buildings, hospitals, airports, tunnels, renewable energy plants, and areas with strict fire safety requirements. It converts medium voltage power (typically 1 kV to 35 kV) down to usable low voltage levels, ensuring safe and stable electricity distribution.

✅ 2000 kVA Medium Voltage Dry Type Transformer Advantages

Dry type transformers eliminate the need for flammable insulating liquids, offering enhanced safety and reduced maintenance costs. They resist moisture, dust, and chemical contaminants, enabling operation in harsh or sensitive environments. Their modular, sealed construction simplifies transportation and installation, with excellent thermal performance and low noise emissions for urban and indoor applications.

✅ 2000 kVA Medium Voltage Dry Type Transformer Dimensions

Typical dimensions may vary depending on design and enclosure type:

• Length: 2000–2500 mm

• Width: 1200–1400 mm

• Height: 1800–2100 mm

• Weight (Net): Approximately 4200–4800 kg

ENERGY TRANSFORMER provides detailed installation drawings, foundation bolt patterns, and lifting point information for easy setup.

Get More:300 kVA Dry Type Transformer for Indoor & Industrial Use | UL/CSA Certified

✅ 2000 kVA Medium Voltage Dry Type Transformer Weight and Handling

• Transport Weight: Approximately 4.5 to 5.0 tons depending on enclosure

• Mounting Options: Skid base, floor mounting, or rail mount available

• Lifting Points: Integrated for safe and balanced lifting
  ENERGY TRANSFORMER ensures secure packaging, detailed lifting guides, and user manuals for smooth delivery and installation.

✅ 2000 kVA Medium Voltage Dry Type Transformer Price Range

The 2000 kVA dry type transformer typically ranges from USD $22,000 to $35,000, influenced by conductor materials (copper or aluminum), enclosure type, accessories, and certification options. ENERGY TRANSFORMER offers factory-direct pricing with EXW, FOB, CIF shipping terms available.

✅ 2000 kVA Medium Voltage Dry Type Transformer Cooling Methods

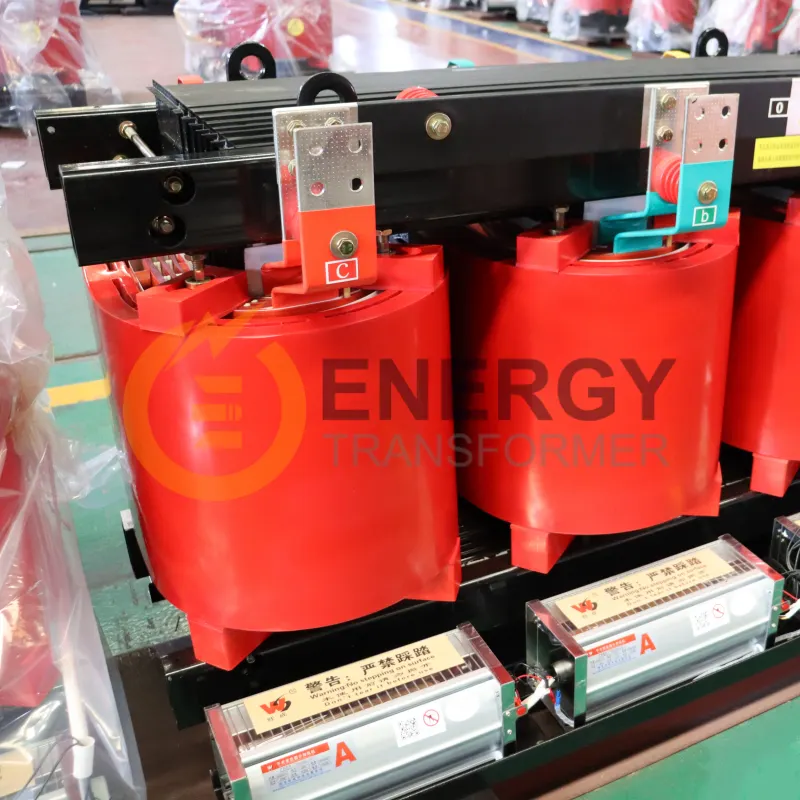

• AN (Air Natural): Standard convection cooling for typical loads

• AF (Air Forced): Forced air cooling for overload or high ambient temperatures

• Dual Cooling: Combines AN and AF to adapt to variable load demands

✅ 2000 kVA Medium Voltage Dry Type Transformer Protection and Monitoring Options

• Digital temperature sensors (PT100/PTC) with alarms

• Automatic fan controllers for AF cooling models

• Optional remote monitoring via RS485 or Modbus RTU

• Surge arresters and grounding systems included

• Seismic and anti-vibration mounting options available

Read More:2500 kVA Dry Type Transformer for Industrial Applications — High Voltage, Indoor Installation

✅ 2000 kVA Medium Voltage Dry Type Transformer Series and Models

• Standard Series: Robust design, copper windings, cost-effective

• Energy-Efficient Series: Low-loss cores and advanced materials

• Premium Series: Noise-reduction, enhanced mechanical strength

• Harmonic-Resistant Models: K-factor rated for non-linear loads

• Outdoor Enclosed Models: IP23, IP44, or IP54 rated for weather protection

• Smart Transformers: IoT-enabled real-time condition monitoring

More Read:Rectifier Transformers Explained: Essential Power Conversion for Industrial DC Applications

✅ 2000 kVA Medium Voltage Dry Type Transformer Vector Groups

Common vector groups offered:

• Dyn11: Standard for distribution networks

• Yyn0: Balanced load applications

• Yd11/Yz11: Synchronization with grid requirements

Custom vector group configurations available on request.

✅ 2000 kVA Medium Voltage Dry Type Transformer Applications

• Industrial power plants

• Commercial office buildings and malls

• Renewable energy sites (solar, wind)

• Hospitals and medical centers

• Data centers and telecom hubs

• Airports, metros, and public transit systems

• Utilities and substations

✅ 2000 kVA Medium Voltage Dry Type Transformer Global Manufacturers and Suppliers

Leading global manufacturers include:

• Siemens Energy (Germany)

• ABB/Hitachi Energy (Switzerland/Japan)

• Schneider Electric (France)

• GE Grid Solutions (USA)

• ENERGY TRANSFORMER (China) — Trusted supplier with worldwide delivery, full certification, competitive pricing, and OEM services

Read More:1500 kVA Three Phase Dry Type Transformer | Indoor Industrial Power Distribution

✅ 2000 kVA Medium Voltage Dry Type Transformer Made in China with Quality Assurance

ENERGY TRANSFORMER's 2000 kVA dry type transformers are Made in China under strict quality control. All products undergo full factory testing, including dielectric, load, and temperature rise tests, ensuring compliance with IEC, ANSI, UL, CSA, CE standards. Our transformers serve customers throughout North and South America with multilingual support and fast lead times.

✅ 2000 kVA Medium Voltage Dry Type Transformer Certifications and Testing

• IEC 60076-11

• ANSI/IEEE C57.12.01 & C57.12.91

• UL 1562 / CSA C22.2 No.47

• CE / UKCA / SASO / GOST (available)

Routine and special tests conducted per client requirements. Third-party inspections by SGS, BV, Intertek, or others welcome.

✅ 2000 kVA Medium Voltage Dry Type Transformer Nameplate and Documentation

Each transformer includes:

• Manufacturer & serial number

• Rated power and voltages

• Frequency and vector group

• Cooling type and insulation class

• Dimensions, weight, and losses

• Wiring diagrams and terminal configurations

• QR code for digital manuals and maintenance history

✅ 2000 kVA Medium Voltage Dry Type Transformer Production, Testing, and Worldwide Delivery

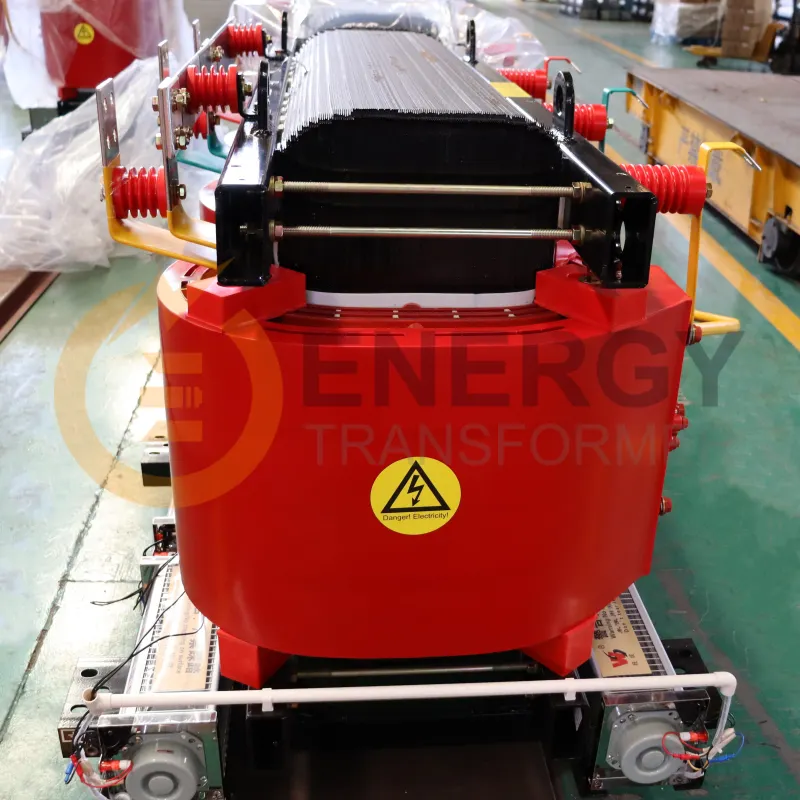

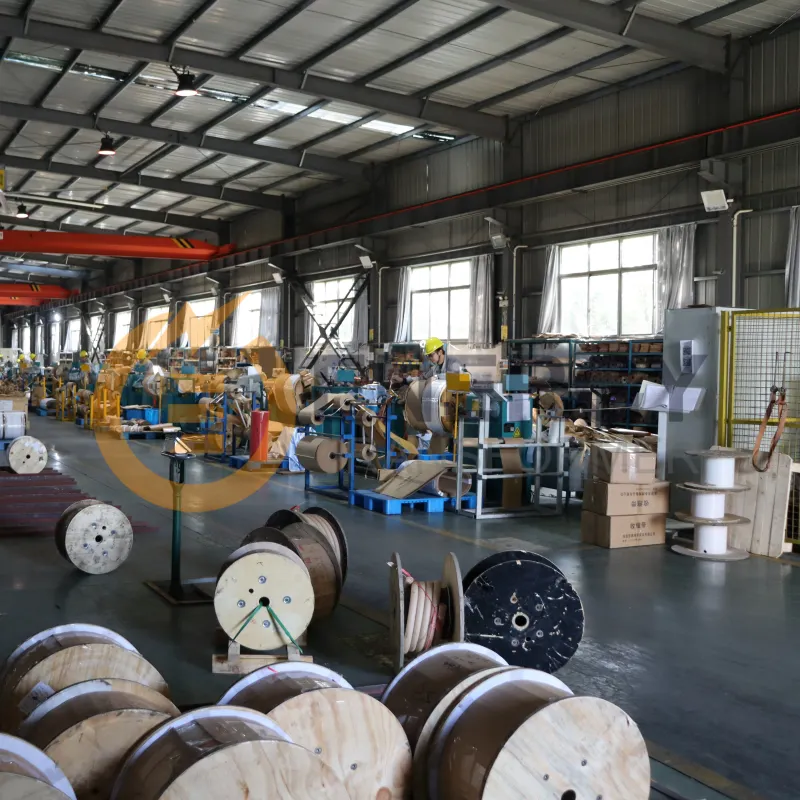

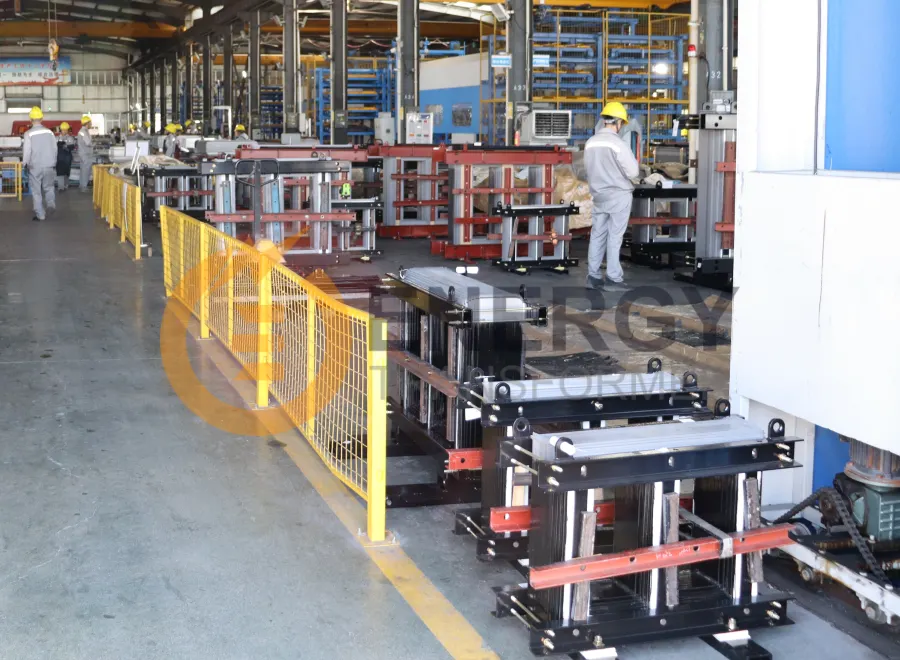

ENERGY TRANSFORMER integrates core lamination, coil winding, vacuum pressure impregnation, assembly, rigorous testing, and packaging under ISO-certified processes. Our 2000 kVA dry type transformers are shipped worldwide with full technical support to ensure safe installation and operation in North and South America's diverse electrical systems.

Learn More:1000 kVA Cast Resin Transformer 13.8 kV to 480Y/277V Dry Type Distribution

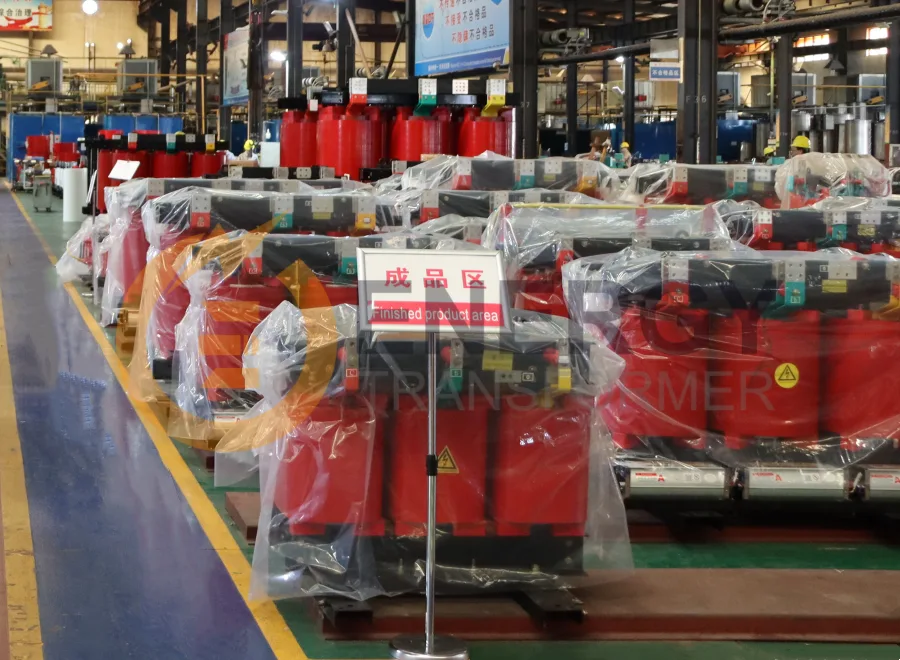

2000 kVA Medium Voltage Dry Type Transformer Production, Testing, Packaging & Global Shipping

The 2000 kVA Medium Voltage Dry Type Transformer, with a primary voltage of 12,470V and secondary voltage of 480Y/277V, is ideal for industrial sites, commercial facilities, utility networks, and renewable energy applications. ENERGY TRANSFORMER manages the entire manufacturing process, including core lamination, precise winding, vacuum pressure impregnation, assembly, thorough quality testing, and protective packaging. Produced in ISO-certified factories, these transformers comply with UL, CE, CSA, and IEC standards, ensuring reliable performance and safe operation for customers worldwide.

Why Choose 2000 kVA Medium Voltage Dry Type Transformer (12470V to 480Y/277V)?

Energy Transformer's 2000 kVA medium voltage dry type transformer is engineered to deliver safe, efficient, and eco-conscious power distribution for industrial, commercial, and utility applications. Designed for a primary voltage of 12,470V and a secondary of 480Y/277V, this three-phase transformer is ideal for critical infrastructure, renewable energy projects, and large-scale electrical networks in North America.

✅ Fire-Resistant and Environmentally Safe
The advanced epoxy resin encapsulation offers outstanding flame-retardant properties, eliminating risks of oil leaks and fire hazards. This makes it an excellent choice for indoor use in hospitals, data centers, manufacturing plants, and office complexes.

✅ Robust Performance in Demanding Conditions
Moisture-proof and dust-resistant construction ensures reliable operation in humid, polluted, or corrosive environments. Suitable for coastal regions, industrial zones, and other harsh settings requiring maintenance-free transformers.

✅ Compliance with International Standards
Certified to meet UL, CSA, ANSI/IEEE, IEC 60076-11, and CE requirements. Perfectly compatible with electrical grids across the USA, Canada, Mexico, and South American countries.

✅ High Efficiency and Low Noise Operation
Utilizing premium-grade silicon steel core and precision copper windings, this transformer achieves efficiency levels exceeding 98.5%. Natural air cooling (AN) is standard, with optional forced-air cooling (AF) available for high load demands and confined spaces.

✅ Versatile Customization and Configurations
Available in both open-frame and fully enclosed designs with IP23 or IP54 protection ratings. Options include temperature monitoring sensors, surge protection devices, custom paint finishes, and IoT-enabled smart monitoring systems. Standard vector group is Dyn11, with alternatives on request.

✅ Quick Manufacturing and Worldwide Export
Typical production time ranges from 3 to 6 weeks. Transformers are securely packaged for global shipping via sea, air, or land transport. Delivery terms include EXW, FOB, CIF, and DDP to fit diverse logistics needs.

📩 Contact Energy Transformer now to request detailed specifications, CAD drawings, or personalized pricing for your 2000 kVA medium voltage dry type transformer project.

✅ Factory-direct pricing
✅ Global certifications and approvals
✅ Trusted by clients in over 70 countries
