Common Types of Transformers Used in the U.S. and Canada: Specifications, Applications, and Selection Guide

Common transformer types used in the USA, Canada, and Europe – Energy Transformer factory supplies dry type, pad-mounted, and oil-filled transformers globally.

Introduction: Why Transformer Knowledge Is Crucial in North America

Transformers are the silent workhorses of the North American electrical grid. From utility-scale substations to rooftop solar inverters, they ensure voltage compatibility, system stability, and safety. Whether you’re an engineer, electrical contractor, distributor, or facility manager, selecting the right transformer is essential for cost, safety, and compliance — especially in highly regulated markets like the U.S. and Canada.

Though similar in many ways, the two countries differ in voltage standards, certification systems, and climatic demands, which directly impact transformer types, design, and performance.

1. Transformer Classification Overview

📌 A. By Cooling Method

Type Description Best For Notes
Dry-Type Air-cooled, resin-encapsulated coils Indoors (schools, data centers) Safe, low maintenance, but limited in high kVA ratings
Oil-Immersed Uses mineral or silicone oil for insulation and cooling Outdoor and utility applications Requires containment and maintenance; higher efficiency

📌 B. By Function

  • Power Transformers: Used in transmission systems, typically 10MVA and above.

  • Distribution Transformers: Step-down transformers for local delivery, ranging from 10 kVA to 5000 kVA.

  • Autotransformers: Compact, efficient transformers using a shared winding. Ideal for step-up/step-down with close voltage values.

  • Isolation Transformers: Provide galvanic isolation between primary and secondary circuits.

  • Instrument Transformers: CTs and PTs used for measurement and protection in high-voltage systems.

  • Buck-Boost Transformers: Minor voltage adjustments (e.g., 208V → 240V). Widely used in lighting and HVAC applications.

📌 C. By Phase

  • Single-Phase

    • Used for homes and small commercial buildings

  • Three-Phase

    • Standard in industrial and large commercial facilities

    • More efficient and better suited for motors and machinery

2. Popular Transformer Types in U.S. and Canadian Markets

Transformer Type Typical U.S. Application Typical Canadian Application Regional Insights
Pole-Mounted Suburban overhead distribution Rural installations U.S. favors overhead, Canada rural too
Pad-Mounted Commercial/urban underground systems Widely used in cities Tamper-proof, aesthetically preferred
Dry-Type (Encapsulated) Hospitals, airports, schools Offices, institutional buildings Often required indoors due to safety
Oil-Immersed Grid, industrial plants Utility and mining installations Cold-weather versions popular in Canada
Buck-Boost HVAC systems, lighting retrofits HVAC, commercial buildings More common in U.S. 208/240V conversions
Step-Up/Step-Down Renewables, motor loads Wind/solar farms, oil & gas Required to tie into national grid
Zig-Zag Transformers Grounding & harmonic suppression Industrial use Neutral grounding in large facilities

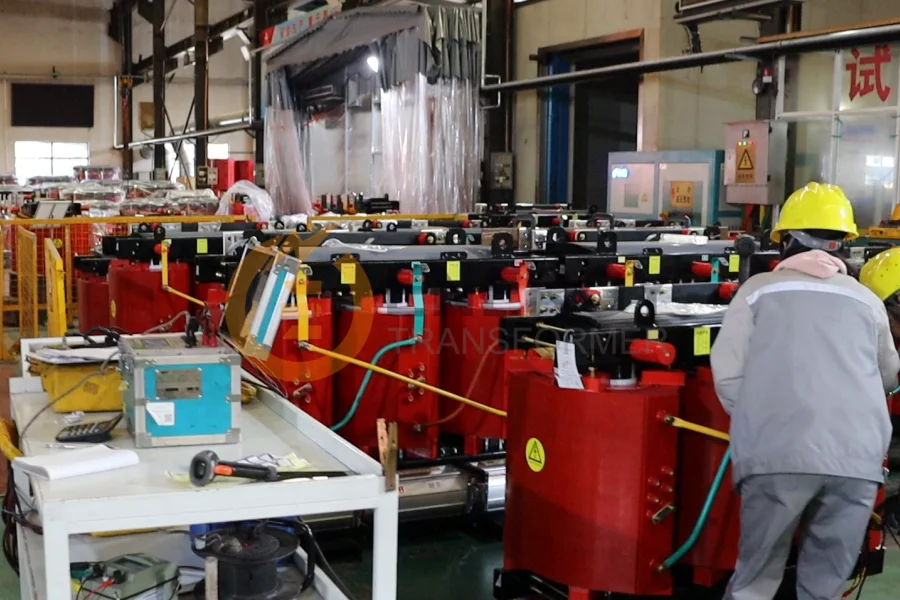

Energy Transformer – dry type transformer factory and supplier for USA, Canada, UK, Germany, France, and international markets.

3. Voltage Standards and Regional Electrical Codes

🔌 Common Voltage Systems

Country Residential Commercial Industrial
U.S. 120/240V, 120/208V 277/480V 480V, 2400V
Canada 120/240V 120/208V, 347/600V 600V, 4160V

🔍 Note: 347/600V is a uniquely Canadian three-phase standard, especially in commercial and industrial facilities.

🧾 Regulatory Standards

  • U.S.

    • UL (Underwriters Laboratories)

    • ANSI (American National Standards Institute)

    • NEMA (National Electrical Manufacturers Association)

    • DOE 2023/2025 Efficiency Requirements

  • Canada

    • CSA (Canadian Standards Association)

    • CEC (Canadian Electrical Code)

    • NRCan energy efficiency regulations (aligned with CSA C802 series)

⚠️ Cross-border projects must often comply with both UL and CSA.

4. Environmental Considerations: The Cold Climate Factor

Transformers in Canada, especially in provinces like Alberta or Ontario, must be rated for:

  • Cold-start operation at -40°C

  • Insulating fluids with low pour points

  • Stainless steel enclosures to prevent corrosion

  • Internal heaters to avoid moisture condensation

In contrast, regions in the U.S. like California or Texas may require:

  • Heat-resistant insulation

  • High ambient temperature derating

  • Seismic compliance in earthquake-prone areas

5. Key Factors to Consider When Selecting a Transformer

Factor Why It Matters
Load Type Motor loads may need special inrush tolerance
Installation Location Indoor/outdoor, above/below ground, ventilated or sealed space
Voltage Requirements Must match utility service and equipment voltage
Efficiency Standards DOE in the U.S., NRCan in Canada—both have rising efficiency benchmarks
Certifications UL/CSA label ensures insurance and code compliance
Noise & Safety Hospitals, schools, and offices may need low-noise or fire-resistant units
Special Functions Harmonic mitigation, temperature monitoring, surge protection, etc.

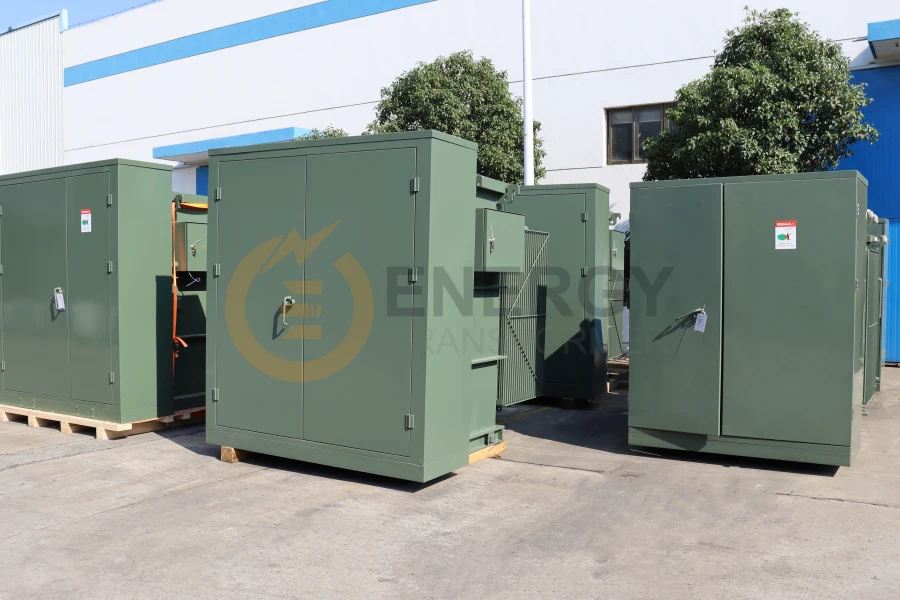

Energy Transformer – pad-mounted transformer manufacturer, wholesale supplier, and factory direct exporter for the USA, Canada, and Europe.


6. Market Trends: What’s Changing in North American Transformer Use

🔋 1. Rise of Renewable Energy

  • Transformers must now handle variable input from solar and wind

  • Step-up transformers for grid integration

  • Dual-voltage, inverter-friendly designs growing in demand

🏙️ 2. Urbanization and Undergrounding

  • Pad-mounted and submersible transformers becoming more popular

  • Focus on aesthetics, noise, and tamper-resistance

♻️ 3. Energy Efficiency & Eco-Friendly Fluids

  • DOE and NRCan regulations pushing higher minimum efficiencies

  • Shift toward silicone oil, natural esters (FR3), and dry-type designs

📡 4. Smart Transformers & Grid Modernization

  • Sensors and communication interfaces for real-time monitoring

  • Load balancing, remote fault detection, predictive maintenance

7. Case Study: Choosing Between Dry-Type and Oil-Immersed for a Data Center

Criteria Dry-Type Oil-Immersed
Fire Risk Low Medium (requires containment)
Efficiency Moderate High
Maintenance Minimal Requires periodic oil testing
Cooling Needs Ventilation required Radiators or forced oil cooling
CSA/UL Certifications Easier to obtain for indoor use More common in utility settings

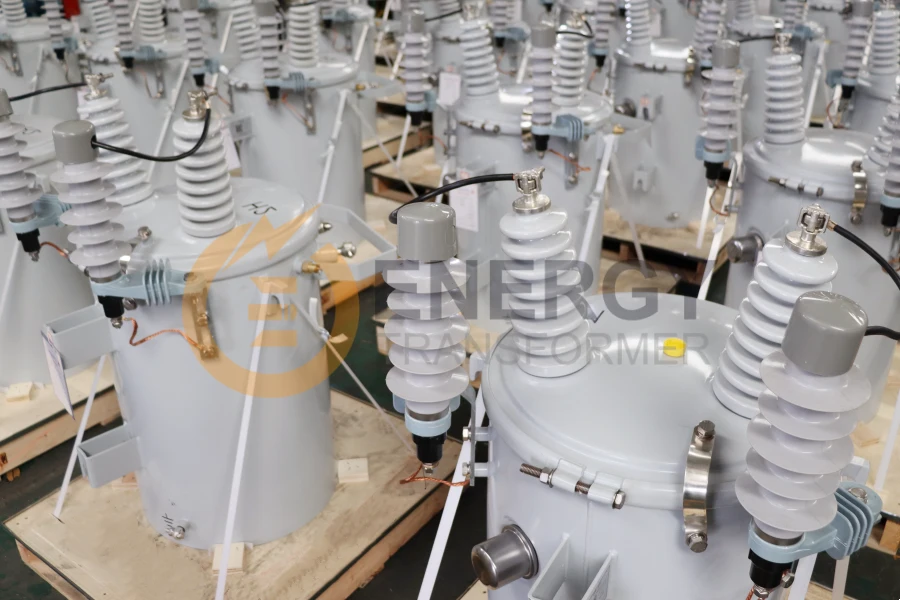

Energy Transformer – pole-mounted transformer manufacturer and wholesale supplier. Factory direct sales for USA, Canada, Europe, and global markets.

👉 Verdict: For indoor, tech-heavy facilities like data centers, dry-type is generally preferred due to safety and maintenance simplicity.

8. Final Thoughts: Selecting the Right Transformer—Now with a Smarter Choice

As transformer standards evolve and the North American market becomes increasingly performance-driven, it's essential to not only understand the types of transformers available, but also to choose the right supplier and product partner.

Whether you're a contractor working on a school renovation in Ontario, an EPC company building a solar farm in Arizona, or a commercial electrician installing a 600V system in Vancouver — you need transformers that are:

✅ Compliant

  • Built to meet UL, ANSI, and DOE 2023/2025 standards (U.S.)

  • Certified to CSA, C802.1/2, and NRCan energy efficiency standards (Canada)

✅ Ready for Any Application

  • Power, distribution, isolation, auto, step-up/step-down, pad-mounted, pole-mounted

  • Dry-type and oil-immersed designs available

✅ Fully Customizable

  • Voltage, frequency, enclosure type, tap configurations, temperature class

  • OEM branding and private-label options available upon request

✅ Fast Lead Times

  • Short production cycles with priority for North American clients

  • Inventory stock programs available for standard SKUs (e.g., 480V-208Y/120V)

✅ Price-Competitive Without Compromising Quality

  • Factory-direct pricing

  • Efficient production, lean logistics, and high-volume support

✅ Technical Support

  • Engineering consultation for cross-border projects

  • Drawing packages, wiring diagrams, and support for UL/CSA inspections

  • Bilingual documentation (EN/FR) for Canadian clients

Energy Transformer – dry type transformer factory and supplier for USA, Canada, UK, Germany, France, and international markets.

⚡ Introducing Energy Transformer: Your Trusted Power Partner for the U.S. & Canada

Energy Transformer provides a wide range of high-performance transformers engineered to meet the demanding standards of the North American market.

We specialize in:

🔧 Applications we serve:

  • Commercial buildings, hospitals, data centers

  • EV charging infrastructure

  • Utility substations and smart grid modernization

  • Renewable energy (solar, wind, BESS)

💼 Partner with us to benefit from:

  • Fast quote turnaround

  • Local compliance knowledge

  • Reliable logistics to U.S. & Canadian ports

  • Ongoing engineering and documentation support

📞 Contact Us Today

Looking for a reliable transformer solution that meets U.S. and Canadian requirements — without the long lead times or high costs?

    Energy Transformer
    Energy Transformer

    Energy Transformer is a trusted manufacturer of power and distribution transformers ranging from 10 kVA to 1200 MVA and up to 500 kV. We supply oil-immersed, dry-type, pad-mounted, pole-mounted transformers, and compact substations. Certified to IEC, ANSI, CE, UL, CSA, ISO, and KEMA standards, we support OEM, ODM, and SKD services with fast delivery and factory-direct pricing for clients worldwide.
